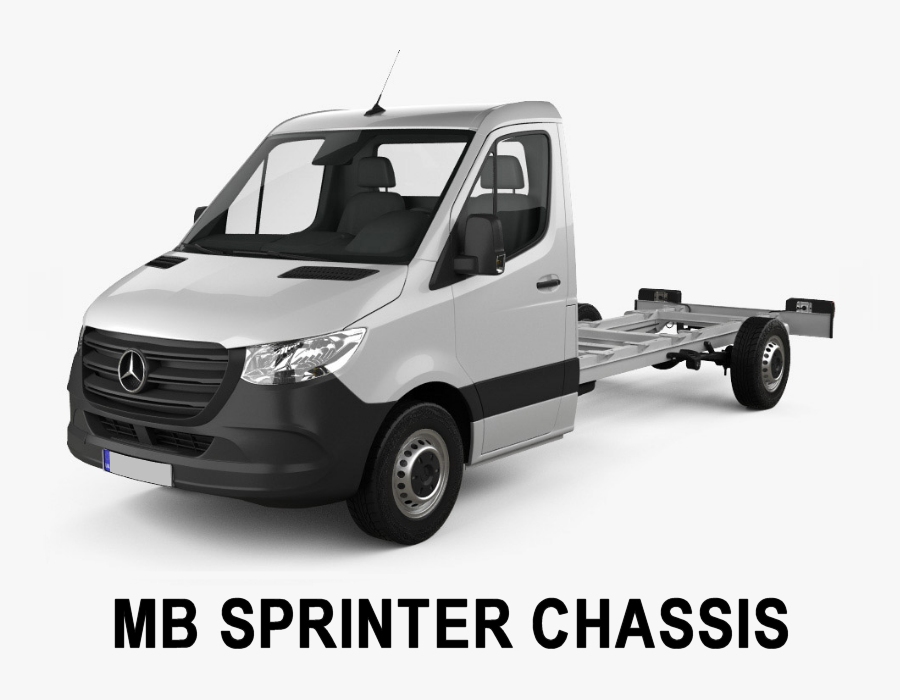

SPRINTER CHASSIS SPECIFICATIONS

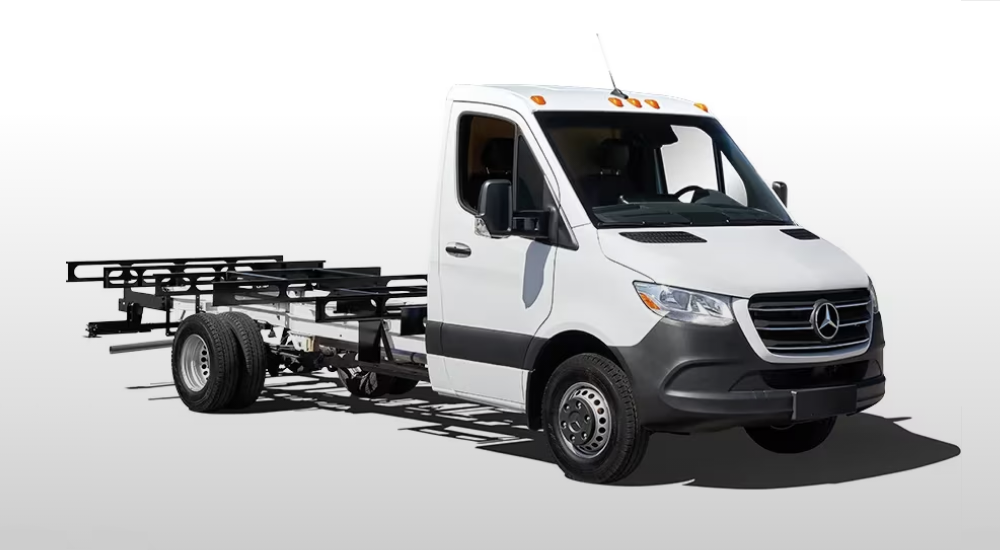

The Mercedes-Benz Sprinter 4500 Chassis Cab with a 144-inch wheelbase
4-cylinder high-output diesel engine with GVWR of up to 12,125 lbs

Size and Weight Specs
Wheelbase: 144" (12.0') / 3.66 m
Overall Length: 245.9" (20.49') / 6.25 m
Cab length: 99.4" (8.28') / 2.52 m
Overall Height: 94.4" (7.87') / 2.40 m
Width with mirrors: 95.5" (7.96') / 2.43 m
GVWR: Up to 12,125 lbs. / 5,500 kg
Payload Capacity: 7,484 lbs. / 3,395 kg
Engine: 4-cylinder turbo diesel high-output
Transmission: 9-speed automatic
Drivetrain: Rear-wheel drive (RWD)
Max Towing Capacity: 7,500 lbs. / 3,402 kg
Fuel Tank Capacity: 24.5 gallons / 92.74 L
